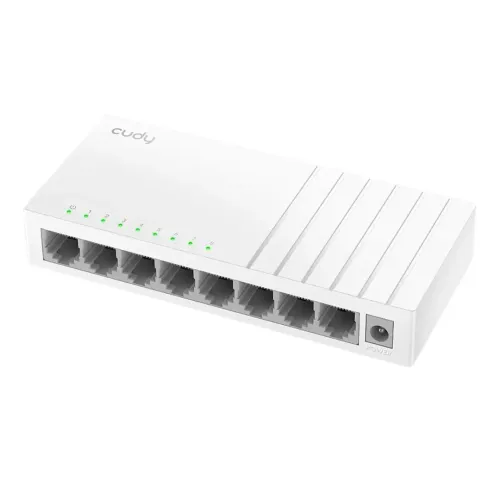

Cudy FS108D 8 Port 10/100Mbps Desktop Switch
| MAC Address Table | 2K entries per device | |
| Hardware Features | ||
| Interface | 8 x 10/100Base-TX Port | |
| LED | LAN~LAN8, Power | |
| Power Supply | DC 5V 0.5A | |
| Dimensions (L x W x H) | 150mm x 90mm x 27mm | |
| Weight | 155g | |
| Manufacture Warranty | ||
| Warranty | 01-Year | |
Description
Cudy FS108D 8 Port 10/100Mbps Desktop Switch
The FS108D is a multiport switch that is ideal for upgrading your existing network to 100Mbps. The switch can connect up to 8 devices at 100Mbps. It gives you an extremely smooth experience while enjoying a high-performance, seamless, low-cost, and simple-to-use 100Mbps network, ideal for multimedia, graphics, HD video, and other applications requiring large transferring allocation.
High Performance
The FS108D Desktop Switch features auto-negotiation. RJ-45 ports can transfer large files and are compatible with any 10/100Mbps Ethernet device. The product’s non-blocking switching architecture forwards and filters packets at full wire speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode provides increased bandwidth to alleviate network congestion, allowing the switch to operate reliably.
Easy to Use
The FS108D Desktop Switch is Auto MDI/MDIX, so no crossover cables are required. No configuration is required; simply plug and play. Each port’s auto-negotiation detects a network device’s link speed (10/100Mbps) and intelligently adjusts for compatibility and optimal performance.
Power Saving
Along with Cudy’s most recent innovative energy-efficient technologies. The FS108D can automatically adjust power consumption based on link status and cable length.

FAQs
1. What is the Cudy FS108D 8-Port Desktop Switch?
The Cudy FS108D is an unmanaged 8-port Ethernet switch that provides reliable 10/100Mbps wired network connectivity for homes, offices, and small businesses.
2. How many devices can I connect to the Cudy FS108D?

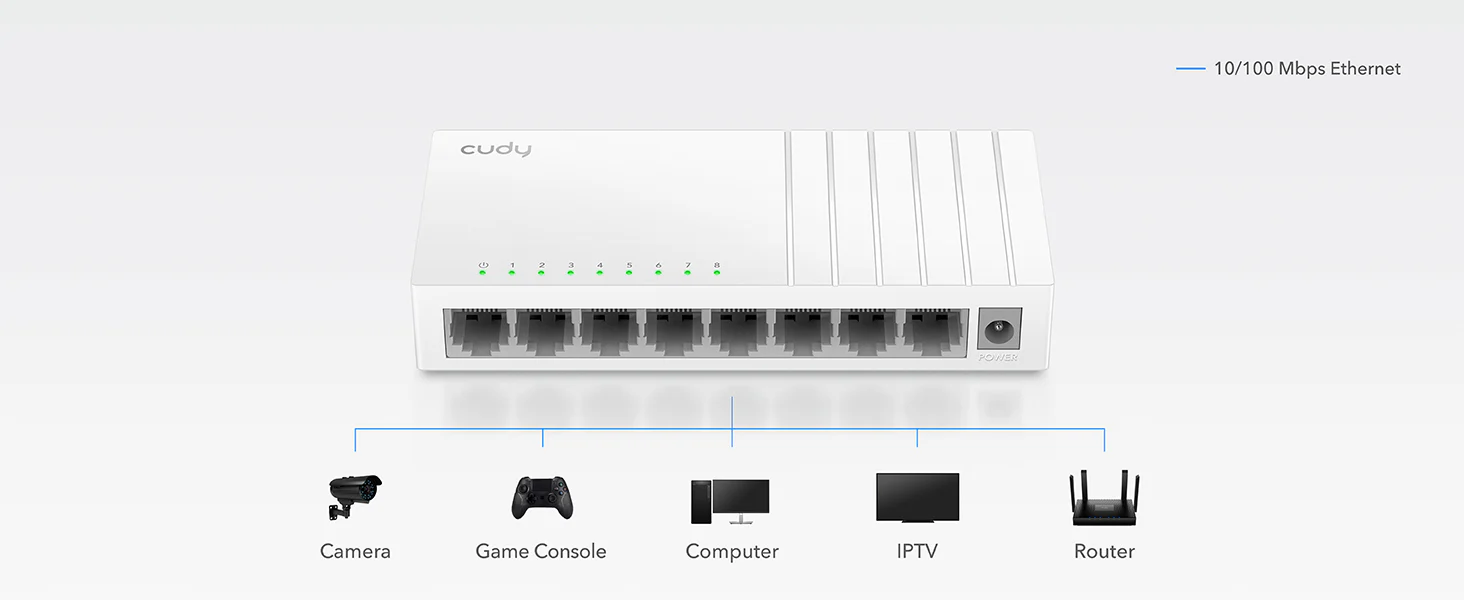

You can connect up to 8 wired devices such as PCs, laptops, printers, IP cameras, smart TVs, and gaming consoles.
3. Does the Cudy FS108D support Gigabit speeds?
No, this model supports 10/100Mbps Fast Ethernet, which is ideal for basic networking tasks like internet sharing, file transfer, and IP cameras.
4. Is the Cudy FS108D plug and play?
Yes, it is a plug-and-play unmanaged switch. No configuration or software installation is required—just connect your Ethernet cables and power it on.
5. Does the Cudy FS108D support auto-negotiation?
Yes, all ports support auto-negotiation and auto MDI/MDIX, allowing automatic detection of network speed and cable type.
6. Is the Cudy FS108D suitable for home and office use?
Yes, it is ideal for home networks, offices, shops, classrooms, and small businesses that need stable wired connectivity.
7. Can this switch be used for CCTV or IP cameras?
Yes, the Cudy FS108D is commonly used for IP cameras and CCTV systems that operate on 10/100Mbps networks.
8. Does the Cudy FS108D require special power or cooling?
No, it features a fanless design for silent operation and uses an external power adapter, making it energy-efficient and quiet.
9. Is the Cudy FS108D durable?
Yes, it is built with quality components for long-term reliability and consistent network performance.
10. What network standards does the Cudy FS108D support?
The switch supports IEEE 802.3, 802.3u, and 802.3x standards, ensuring compatibility with most Ethernet devices.
