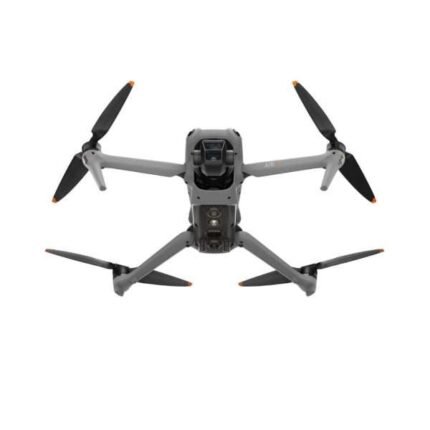

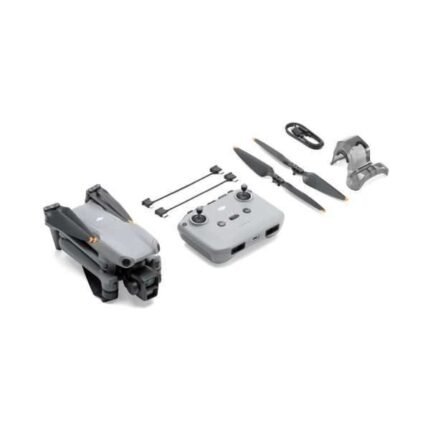

DJI Air 3 with DJI RC-N2 Controller Drone

Dual-Primary-Camera System

Air 3 boasts the first dual-primary camera system of the Air series, embedding a 1/1.3-inch-CMOS wide-angle camera and a 1/1.3-inch-CMOS 3x medium tele camera in a sleek and compact body. The two cameras have the same sensor size but different focal lengths, delivering consistent image quality and more dynamic imaging possibilities.

Wide-Angle Camera

2.4μm Pixel Size

24mm Format Equivalent

f/1.7 Aperture

3x Medium Tele Camera

2.4μm Pixel Size

70mm Format Equivalent

f/2.8 Aperture

Complementary Camera Performance

With the wide-angle camera, sweeping landscapes can be more fully captured.

Iconic from Every Angle

Use the expansive FOV of the wide-angle camera to capture more of any landscape. Switch to the 3x medium tele camera to frame any subject as a bold focal point.

Dual-Camera 48MP Photos

Both cameras are capable of delivering 48MP photos filled with true-to-life details that look great and allow seamless cropping in post for those who need it.

Dual-Camera 4K/60fps HDR Videos

Air 3’s two 1/1.3-inch CMOS sensors support dual native ISO for direct output of 4K/60fps HDR video without cropping. This means footage from either camera can be packed with rich coloring and natural lighting transitions for breathtaking and highly-accurate results.

Max Video Specification

4K/100fps

HDR Video

Up to 4K/60fps

Color Modes

10-bit D-Log M

10-bit HLG

Both cameras also support 10-bit D-Log M and 10-bit HLG color modes. 10-bit D-Log M mode helps retain more highlight and shadow details for increased flexibility when editing. 10-bit HLG mode can present a higher dynamic range, achieving excellent imaging results without color grading.

Extended Flight, Innovative Charging

Air 3 offers up to 46 minutes of flight time, an increase of 48% compared to the previous generation. This provides plenty of time to explore, adjust compositions, and get the shots you want, all during a single flight.

The new battery charging hub supports an innovative power transfer function. Simply press and hold the function button to transfer the remaining power from multiple batteries to the battery with the highest remaining power, giving you a more fully charged battery in situations where charging options are limited.

Omnidirectional Obstacle Sensing

An omnidirectional sensing system enables comprehensive environmental awareness, allowing Air 3 to detect obstacles in all directions. When obstacles are detected, Air 3 can use APAS 5.0 to perform smoother avoidance movements for a safer overall flight experience. Even complete beginners can now fly with confidence and execute creative ideas with enhanced safety.

O4 HD Video Transmission

The next-gen O4 HD video transmission system empowers Air 3 with dramatically enhanced transmission performance. It provides a max range of 20 km with increased stability, and a 1080p/60fps max-quality live feed to ensure ultra-smooth viewing and operating.

Advanced RTH

During Smart RTH, Air 3 will automatically plan an optimized flight route for Advanced RTH, while maintaining omnidirectional obstacle sensing to return to its home point quickly and safely.

Intelligent Features to Fly Inspired

FocusTrack

FocusTrack keeps you or your subject easily in the center of the frame. The 3x medium tele camera unlocks a unique sense of spatial compression when highlighting subjects. This updated tracking performance combined with omnidirectional obstacle sensing lets you get intelligent, well-planned shots whenever and wherever you need them.

Specifications

Aircraft

• Takeoff Weight: 720 g

• Dimensions: Folded (without propellers): 207×100.5×91.1 mm (L×W×H)
  Unfolded (without propellers): 258.8×326×105.8 mm (L×W×H)

• Max Ascent Speed: 10 m/s

• Max Descent Speed: 10 m/s

• Max Horizontal Speed (at sea level, no wind): 21 m/s

• Max Takeoff Altitude: 6000 m

• Max Flight Time: 46 minutes
  ^{Measured by DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.}

• Max Hovering Time: 42 minutes
  ^{Measured by DJI Air 3 hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.}

• Max Flight Distance: 32 km

• Max Wind Speed Resistance: 12 m/s

• Max Pitch Angle: 35°

• Operating Temperature: -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System: GPS + Galileo + BeiDou

• Hovering Accuracy Range: Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)Horizontal:
  ±0.3 m (with vision positioning)
  ±0.5 m (with high-precision positioning system)

• Internal Storage: 8 GB

Camera

• Image Sensor: Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
  Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP

• Lens: Wide-Angle Camera
  FOV: 82°
  Format Equivalent: 24 mm
  Aperture: f/1.7
  Focus: 1 m to ∞Medium Tele Camera
  FOV: 35°
  Format Equivalent: 70 mm
  Aperture: f/2.8
  Focus: 3 m to ∞

• ISO Range: Video
  Normal and Slow Motion:
  100-6400 (Normal)
  100-1600 (D-Log M)
  100-1600 (HLG)
  Night:
  100-12800 (Normal)Photo
  100-6400 (12 MP)
  100-3200 (48 MP)

• Shutter Speed: Wide-Angle Camera
  12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
  48MP Photo: 1/8000-2 sMedium Tele Camera
  12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
  48MP Photo: 1/8000-2 s

• Max Image Size: Wide-Angle Camera: 8064×6048
  Medium Tele Camera: 8064×6048

• Still Photography Modes: Wide-Angle Camera
  Single Shot: 12 MP and 48 MP
  Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3 frames
  Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3 frames at 0.7 EV step
  Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 sMedium Tele Camera
  Single Shot: 12 MP and 48 MP
  Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3 frames
  Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3 frames at 0.7 EV step
  Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s

• Photo Format: JPEG/DNG (RAW)

• Video Resolution: Wide-Angle Camera:
  H.264/H.265
  4K: 3840×2160@24/25/30/48/50/60/100*fps
  FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
  2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
  FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fpsMedium Tele Camera:
  H.264/H.265
  4K: 3840×2160@24/25/30/48/50/60/100*fps
  FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
  2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
  FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps
  ^{* Recording frame rates. The corresponding video plays as slow-motion video. 4K/100fps only supports H.265.}

• Video Format: MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

• Max Video Bitrate: H.264/H.265: 150 Mbps

• Supported File System: exFAT

• Color Mode and Sampling Method: Wide-Angle Camera
  Normal: 8-bit 4:2:0 (H.264/H.265)
  HLG/D-Log M: 10-bit 4:2:0 (H.265)Medium Tele Camera
  Normal: 8-bit 4:2:0 (H.264/H.265)
  HLG/D-Log M: 10-bit 4:2:0 (H.265)

• Digital Zoom: Wide-Angle Camera: 1-3x
  Medium Tele Camera: 3-9x

Gimbal

• Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)

• Mechanical Range: Tilt: -135° to 70°
  Roll: -50° to 50°
  Pan: -27° to 27°

• Controllable Range: Tilt: -90° to 60°
  Pan: -5° to 5°

• Max Control Speed (tilt): 100°/s

• Angular Vibration Range: ±0.0037°

Sensing

• Sensing Type: Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

• Forward: Measurement Range: 0.5-18 m
  Detection Range: 0.5-200 m
  Effective Sensing Speed: Flight Speed ≤ 12 m/s
  FOV: Horizontal 90°, Vertical 72°

• Backward: Measurement Range: 0.5-18 m
  Effective Sensing Speed: Flight Speed ≤ 12 m/s
  FOV: Horizontal 90°, Vertical 72°

• Lateral: Measurement Range: 0.5-30 m
  Effective Sensing Speed: Flight Speed ≤ 12 m/s
  FOV: Horizontal 90°, Vertical 72°

• Upward: Measurement Range: 0.5-18 m
  Effective Sensing Speed: Flight Speed ≤ 6 m/s
  FOV: Front and Back 72°, Left and Right 90°

• Downward: Measurement Range: 0.3-14 m
  Effective Sensing Speed: Flight Speed ≤ 6 m/s
  FOV: Front and Back 106°, Left and Right 90°

• Operating Environment: Forward, Backward, Left, Right, and Upward:
  Surfaces with discernible patterns and adequate lighting (lux > 15)
  Downward:
  Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)

• 3D Infrared Sensor: Measurement Range: 0.1-8 m (reflectivity > 10%)
  FOV: Front and Back 60°, Left and Right 60°

Video Transmission

• Video Transmission System: O4

• Live View Quality: Remote Controller:
  1080p/30fps, 1080p/60fps

• Operating Frequency: 2.4000-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz
  ^{5.170-5.250 GHz can be used only in countries and regions were permitted by local laws and regulations.}

• Transmitter Power (EIRP): 2.4 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)5.1 GHz:
  < 23 dBm (CE)5.8 GHz:
  < 33 dBm (FCC)
  < 30 dBm (SRRC)
  < 14 dBm (CE)

• Max Transmission Distance (unobstructed, free of interference): FCC: 20 km
  CE: 10 km
  SRRC: 10 km
  MIC: 10 km
  ^{Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.}

• Max Transmission Distance (unobstructed, with interference): Strong Interference: urban landscape, approx. 1.5-4 km
  Medium Interference: suburban landscape, approx. 4-10 km
  Low Interference: suburb/seaside, approx. 10-20 km
  ^{Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Transmission Distance (obstructed, with interference): Low Interference and Obstructed by Buildings: approx. 0-0.5 km
  Low Interference and Obstructed by Trees: approx. 0.5-3 km
  ^{Data tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Download Speed: O4:
  10 MB/s (with DJI RC-N2 Remote Controller)
  10 MB/s (with DJI RC 2)
  Wi-Fi 5: 30 MB/s*
  ^{* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.}

• Lowest Latency: Aircraft + Remote Controller: approx. 120ms
  ^{Depending on the actual environment and mobile device.}

• Antenna: 6 antennas, 2T4R

Wi-Fi

• Protocol: 802.11 a/b/g/n/ac

• Operating Frequency: 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmitter Power (EIRP): 2.4 GHz:
  < 20 dBm (FCC/CE/SRRC/MIC)5.8 GHz:
  < 20 dBm (FCC/SRRC)
  < 14 dBm (CE)

Bluetooth

• Protocol: Bluetooth 5.2

• Operating Frequency: 2.400-2.4835 GHz

• Transmitter Power (EIRP): < 10 dBm

Battery

• Capacity: 4241mAh

• Weight: Approx. 267 g

• Nominal Voltage: 14.76 V

• Max Charging Voltage: 17 V

• Type: Li-ion 4S

• Energy: 62.6Wh

• Charging Temperature: 5° to 40° C (41° to 104° F)

• Charging Time: Approx. 80 minutes (with DJI 65W Portable Charger)
  Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)

Charger

• Input: DJI 65W Portable Charger:
  100-240 V (AC), 50-60 Hz, 2 ADJI 100W USB-C Power Adapter:
  100-240 V (AC), 50-60 Hz, 2.5 A

• Output: DJI 65W Portable Charger:
  USB-C
  5 V, 5 A
  9 V, 5 A
  12 V, 5 A
  15 V, 4.3 A
  20 V, 3.25 A
  5-20 V, 3.25 AUSB-A
  5 V, 2 A
  DJI 100W USB-C Power Adapter:
  Max 100 W (total)
  ^{When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.}

• Rated Power: DJI 65W Portable Charger: 65 W
  DJI 100W USB-C Power Adapter: 100 W

Battery Charging Hub

• Input: USB-C: 5-20 V, max 5 A

• Output (power accumulation): Battery Port: 12-17 V, 3.5 A

• Output (charging): Battery Port: 12-17 V, max 5 A

• Output (USB): USB-C:
  5 V, 3 A
  9 V, 5 A
  12 V, 5 A
  15 V, 5 A
  20 V, 4.1 A

• Charging Type: Three batteries charged in sequence.

• Compatibility: DJI Air 3 Intelligent Flight Battery

Car Charger

• Input: Car Power Input:
  12.7-16 V, 6.5 A, rated voltage 14 V (DC)

• Output: USB-C:
  5 V, 5 A
  9 V, 5 A
  12 V, 5 A
  15 V, 4.3 A
  20 V, 3.25 A
  5-20 V, 3.25 AUSB-A:
  5 V, 2 A

• Rated Power: 65 W

• Charging Temperature: 5° to 40° C (41° to 104° F)

Storage

• Recommended microSD Cards: SanDisk Extreme PRO 32GB V30 U3 A1 microSDHC
  Lexar 1066x 64GB V30 U3 A2 microSDXC
  Lexar 1066x 128GB V30 U3 A2 microSDXC
  Lexar 1066x 256GB V30 U3 A2 microSDXC
  Lexar 1066x 512GB V30 U3 A2 microSDXC
  Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC
  Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC
  Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC
  Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC
  Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC
  Samsung EVO Plus 512GB V30 U3 A2 microSDXC

DJI RC-N2 Remote Controller

• Model: RC151

• Max Operating Time: Without charging any mobile device: 6 hours
  When charging a mobile device: 3.5 hours

• Max Supported Mobile Device Size: 180×86×10 mm (L×W×H)

• Operating Temperature: -10° to 40° C (14° to 104° F)

• Charging Temperature: 5° to 40° C (41° to 104° F)

• Charging Time: 2.5 hours

• Charging Type: It is recommended to use a 5V/2A charger.

• Battery Capacity: 18.72 Wh (3.6 V, 2600 mAh × 2)

• Type: 18650 Li-ion

• Dimensions: 104.22×149.95×45.25 mm (L×W×H)

• Weight: 375 g

• Supported Mobile Device Port Type: Lightning, USB-C, Micro-USB
  ^{Using a mobile device with Micro-USB port requires the DJI RC-N1 RC Cable (Standard Micro USB connector), which is sold separately.}

• Video Transmission Operating Frequency: 2.4000-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz

• Video Transmission Transmitter Power (EIRP): 2.4 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)5.1 GHz:
  < 23 dBm (CE)5.8 GHz:
  < 33 dBm (FCC)
  < 14 dBm (CE)
  < 30 dBm (SRRC)
